Vintage Vornado Information

Above is from a 1949 early 1950 Vornado fan catalog showing the new stamped steel line.

Questions / Answers from Vornado Owners Booklet

Click to add an engaging title. High quality images go a long way in looking professional online.

This Tab is Under Construction.

Check back Soon!

Strongly recommended lubricants are Zoom Turbine Oil specifically made for oil impregnated bronze sleeve bearings. It has a convenient pull out spout for reaching the oil spouts found at the top of the motor. Also recommended is 3 in1 ELECTRIC MOTOR OIL S.A.E. 20.

A cut away version of a Sutco motor showing the oiling spouts on top.

Placement of ID tags on air circulators

Location of ID Tag on 10D1, 12D1, 12P1, 16PA1, 16PB1

Data plate on 38P and 60P will be in the same place but will be a decal rather than a metal plate. They could be gray with orange lettering or the traditional yellow and reddish brown.

Location of ID Tags for 16C, 20C, 24C,28C, 38C

Click to edit text. What do visitors to your website need to know about you and your business?

Location of ID Tag for 26F1 located on the inside of the leg. Tend to disintegrate, may be missing.

Location of ID tag for 24D1, under base. After 1956 and thru 1958 they were silver and dark gray. Vornado logo not present.

38P (1951) clear decal with orange print found on the rear motor housing.

Deciphering the year of manufacture of your vintage Vornado

Identifying the age is of your vintage Vornado is not always straight forward with the early models as it was not stated in the serial number. Lower serial numbers usually indicate an earlier version. Staring in 1950 with the new all stamped steel models identification is a more straight forward. For example; Serial number; B50 xxxx indicates a 1950 model. B51=1951, B52=1952, B53=1953. In 1954 the first two digits in the continuous serial number indicate the year. IE; 5400001=1954. From 1954 thru 1958 all serial numbers on air circulators were designated in this style.

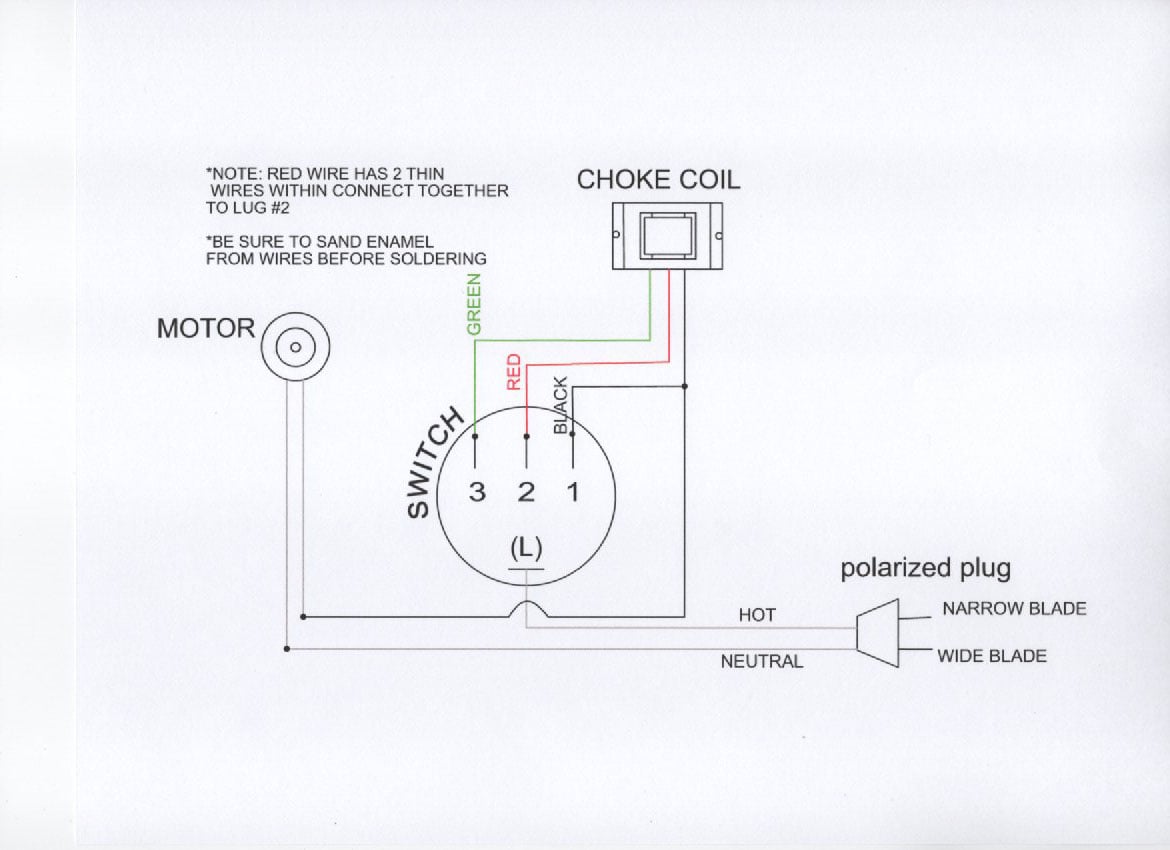

Tip: The wires from the choke coil have a clear varnish insulation that needs to be removed with a fine sand paper before connecting to other wires. Always use insulated wire connectors when connecting wires.

Click to edit text. Focus on how you can benefit your customers.

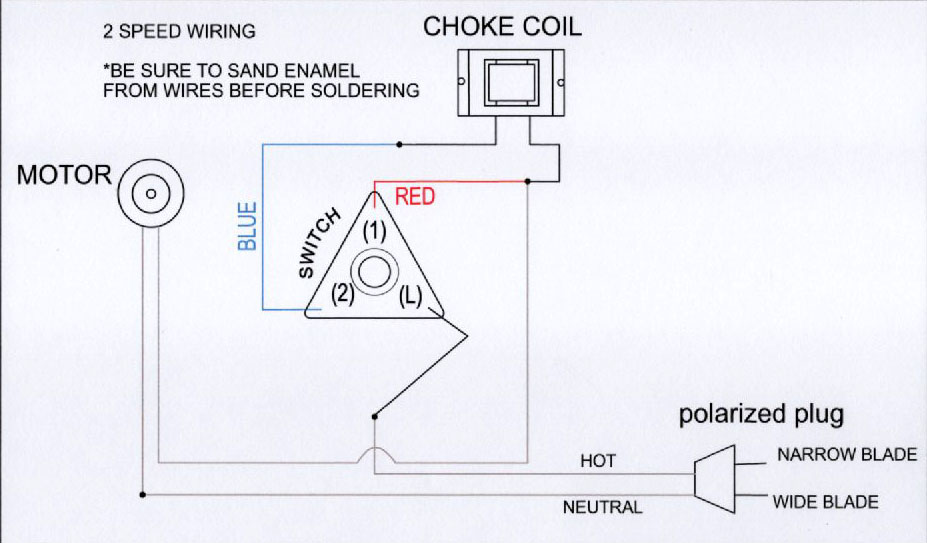

Tip: The wires from the choke coil have a clear varnish insulation that needs to be removed with a fine sand paper before connecting to other wires. Always use insulated wire connectors when connecting wires.

Click to edit text. Focus on how you can benefit your customers.

Kansas Paint and Color at 132 N Mosley in Wichita, KS supplied paint to The O.A. Sutton Vornado Fan Division.  During a visit to Wichita in 2000 my wife and I were walking around Old Town and strolled past this building. The dock door was open on this warm autumn day and could smell the paint fumes wafting out the door. Upon looking inside the loading dock door, I could see hanging from the ceiling, a 60P Vornado circulating the air.  Kansas Paint and Color operated at this location from 1921-2003. (photo courtesy of Wichita Photo Archive unknown photographer)

The names of paint colors give by Vornado are as given;

• Mist Gray (1956-58)
• Dark Green (1956)
• Light Green (1956)
• Charcoal Gray (1956-58)
• Mint Blue (1956-58)
• Coral Rose (1956)
• Vornado green (1950-1955)
• Machinery Gray (1950-55 motor, propeller, flange, flange brackets)

Photos of Vintage Vornados from valued customers. I really enjoy seeing what you are working but most of all helping you with your vintage Vornado. Thanks for the pictures!

Keep sending them and I will post them!
